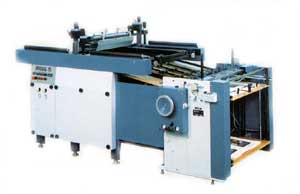

The General Pony Express and Ranger 25 have acquired a devoted following of profit conscious printers who demand high-speed production, close tolerance registration and fast set-ups.

These fourth generation presses are ideal for printing heat transfers, decals, pressure sensitive labels, greeting cards, and P.O.P. displays. It also offers the best method of applying adhesive for flock and glitter.

The improved version of these popular General Presses has been completely redesigned. Outstanding new features include an improved General Automatic Feeder with a motorized stock lift; feed tapes that slow down at the guide position, for more precise registration; improved Squeegee Lift System with easily adjustable down pressure; a positive flood control and a high lift feature. Our new Micro Adjustment System improves set-up times and does not require any tools for locking.

The General Pony Express and the Ranger 25 are built in the United States by BecMar Corp. BecMar is proud to continue the General tradition of quality and customer support.

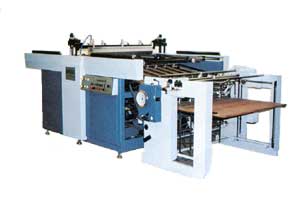

General’s Classic Cylinder Presses are built to provide years of consistent, trouble-free performance at the highest production rates. The Classic Press prints heavy solid areas of color, fine line work, high resolution reverse copy and halftones…at speeds up to 3,250 i.p.h.

The General Masterfeed is easily adjustable from front to rear feed and from sheet to stream feed. The three feed options provide for maximum versatility for feeding any flexible substrate.

Special attention was given to "Time Saving" operator controls and adjustments to provide for maximum productivity. Features such as the Feedboard Lift, Four-Way Micro Adjustment System, Drop Down Delivery, as well as operational controls conveniently located on both sides of the press provide for quicker setups with less down time.

Where ink mileage and uniform deposit thickness are crucial, the General Classic’s full-floating Air Squeegee automatically standardizes pressure of the line-contact print action. Its internal air chamber maintains even pressure all along the blade.

The Classic was designed and built by BecMar Corp, the company that knows and cares about the General Press. BecMar is the leader in providing quality parts, service and customer satisfaction to the screen printing industry.


Specifications

Model

Pony

Ranger

30

40

45

Maximum Sheet Size

11"x17" (27.9 x 41.3cm)

19" x 25" (48.3 x 63.5cm)

22" x 30" (55.9 x 76.2cm)

28" x 40" (71.1 x 101.6cm)

35" x 45" (88.9 x 114.3cm)

Maximum Image Area

11" x 16-1/4" (27.9 x 41.3cm)

18-1/4" x 25" (46.4 x 63.5cm)

21-1/4" x 30" (54.0 x 76.2cm)

27-1/2" x 40" (69.9 x 101.6cm)

34-1/4" x 45" (87.0 x 114.3cm)

Minimum Sheet Size

6"x9" (15.2 x 22.9cm)

9-1/2" x 12-1/2" (24.1 x 31.8cm)

11" x 15" (27.9 x 38.1cm)

14" x 20" (35.6 x 50.8cm)

17-1/2" x 22-1/2" (44.5 x 57.2cm)

Screen Frame OD.

17-3/8" x 31-3/8" (44.1 x 79.7cm)

32" x 39-1/4" (81.3 x 99.7cm)

42" x 41" (106.7 x 104cm)

51-1/4" x 47-1/2" (130 x 120.6cm)

56" x 54-1/2" (142.2 x 138.4cm)

Gripper Margin

3/4" (1.9cm)

3/4" (1.9cm)

3/4" (1.9cm)

3/4" (1.9cm)

3/4" (1.9cm)

Speed Range IPH

0-4000 IPH

0-3500 IPH

0-3250 IPH

0-3000 IPH

0-2600 IPH

Approx. Weight

3,000 lbs

3,600 lbs

4,100 LBS

4,800 LBS

5,900 LBS

Approx. Overall Length

8'6" (2.6m)

8'6" (2.6m)

11'6" (3.05m)

12'6" (3.81m)

13'6" (4.12m)

Approx. Overall Width

3' (.91m)

4'6" (1.14m)

5' (1.52m)

5'10" (1.78m)

6'4" (1.93m)

Approx. Overall Height

4' (1.22m)

4'6" (1.37m)

4'6" (1.37m)

4'6" (1.37m)

4'6" (1.37m)
